Products

Properties of typical wire

Nb3Sn wires

※Please swipe left and right on the screen to check.

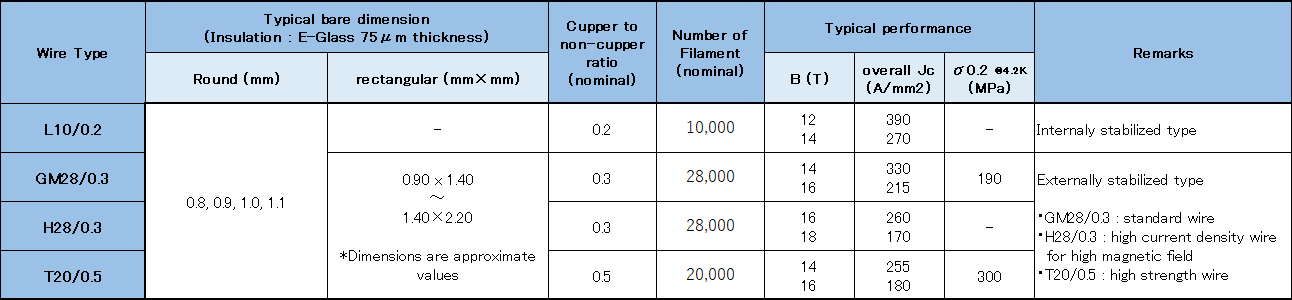

Specification table of Nb3Sn superconducting wires
Typical cross-section

L10/0.2

Typical cross-section of Nb3Sn superconducting wire (L10/0.2)

GM28/0.3 & H28/0.3

Typical round cross-section of Nb3Sn superconducting wire (GM28/0.3 & H28/0.3)

T20/0.5

Typical round cross-section of Nb3Sn superconducting wire (T20/0.5 )

GM28/0.3 & H28/0.3

Typical rectangular cross-section of Nb3Sn superconducting wire (GM28/0.3 & H28/0.3)

T20/0.5

Typical rectangular cross-section of Nb3Sn superconducting wire (T20/0.5 )

NbTi wire

※Please swipe left and right on the screen to check.

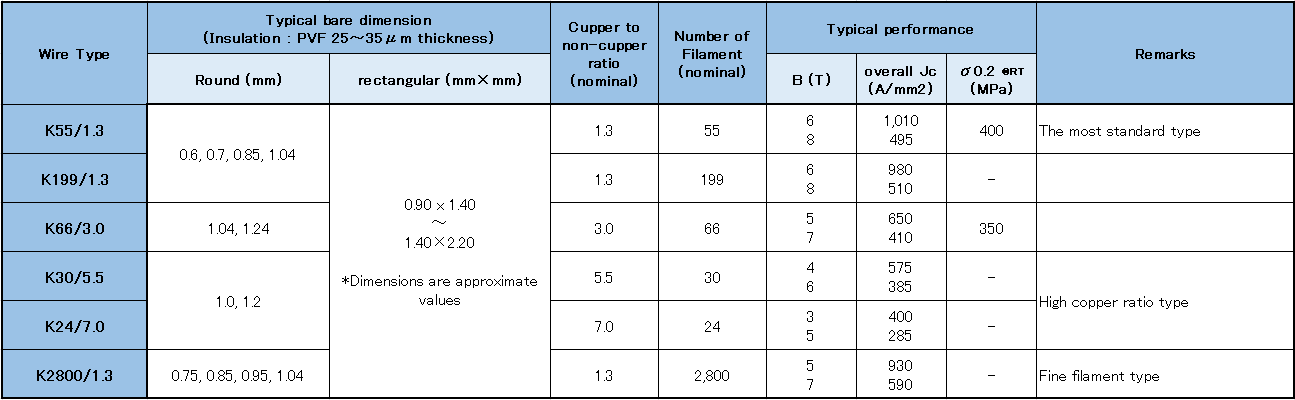

Specification table of NbTi superconducting wires
Typical cross-section

K55/1.3

Typical round cross-section of NbTi superconducting wire (K55/1.3)

K199/1.3

Typical round cross-section of NbTi superconducting wire (K199/1.3)

K66/3.0

Typical round cross-section of NbTi superconducting wire (K66/3.0)

K30/5.5

Typical round cross-section of NbTi superconducting wire (K30/5.5)

K2800/1.3

Typical round cross-section of NbTi superconducting wire (K2800/1.3)

K55/1.3

Typical rectangular cross-section of NbTi superconducting wire (K55/1.3)

K30/5.5

Typical rectangular cross-section of NbTi superconducting wire (K30/5.5)

K24/7.0

Typical rectangular cross-section of NbTi superconducting wire (K24/7.0)

ITER-CS　Nb3Sn Superconducting Wire

Nnb3Sn wire for ITER project
Jastec supplys high-performance Nb3Sn wires fabricated by our latest technology to ITER project, International fusion experiment.

Nb3Sn superconducting wire for ITER Central Solenoid (CS)
