NMR (Nuclear Magnetic Resonance) Magnet Systems

JMTC-400/54/JJ/YH

JMTC-500/54/XC V.2

JMTC-600/54/XC V.2

JMTC-700/54/JJ

JMTC-800/54/JJ

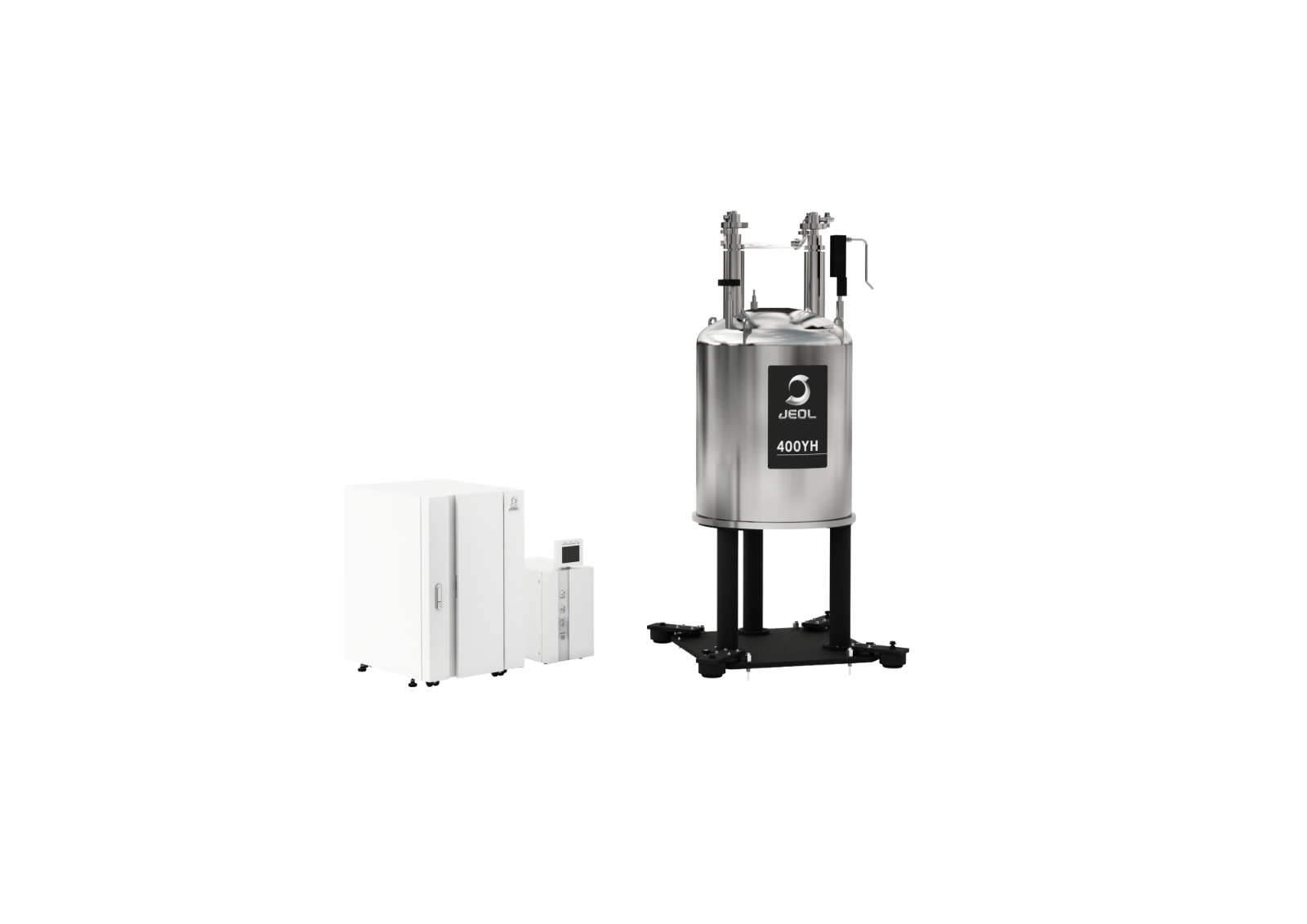

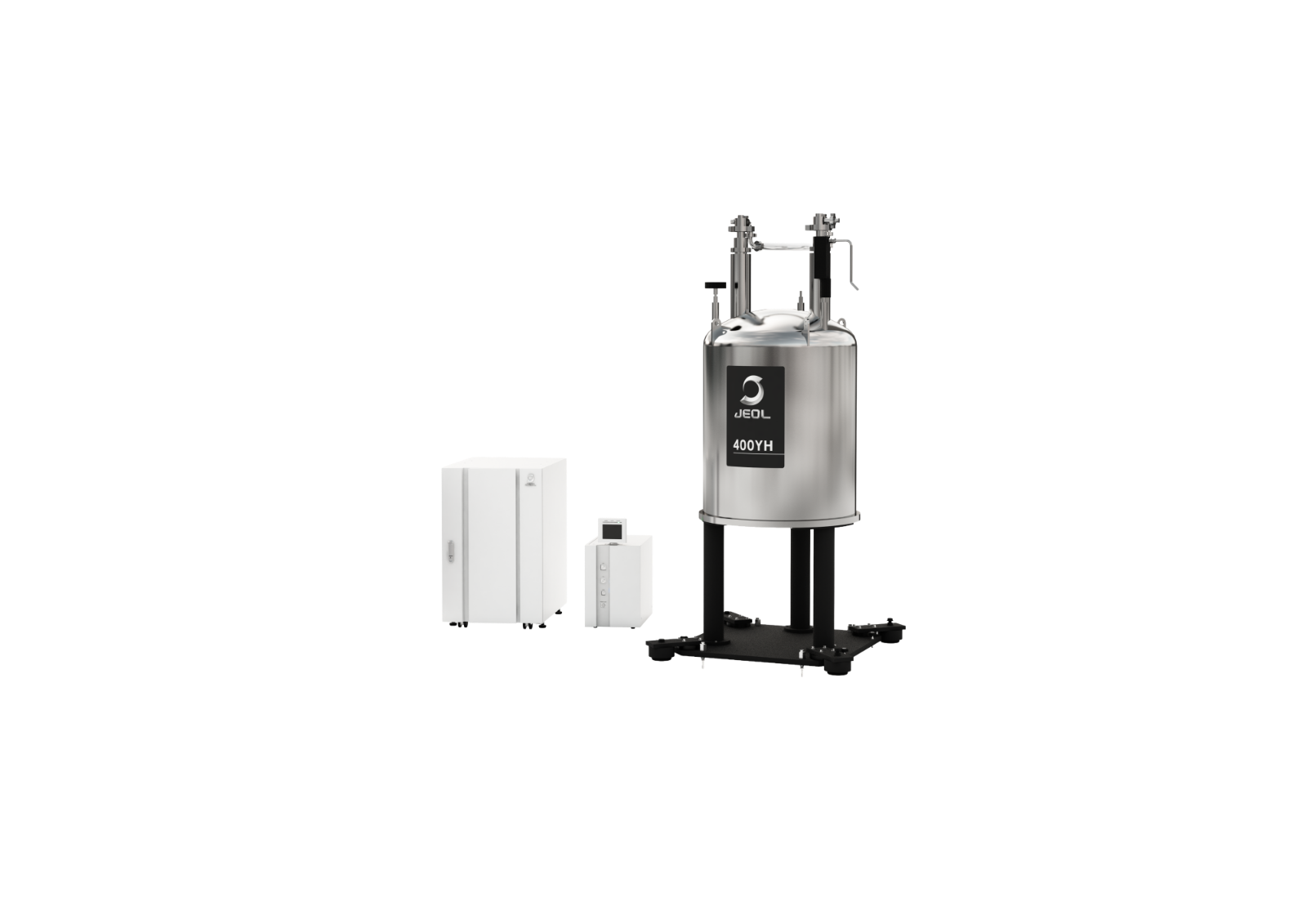

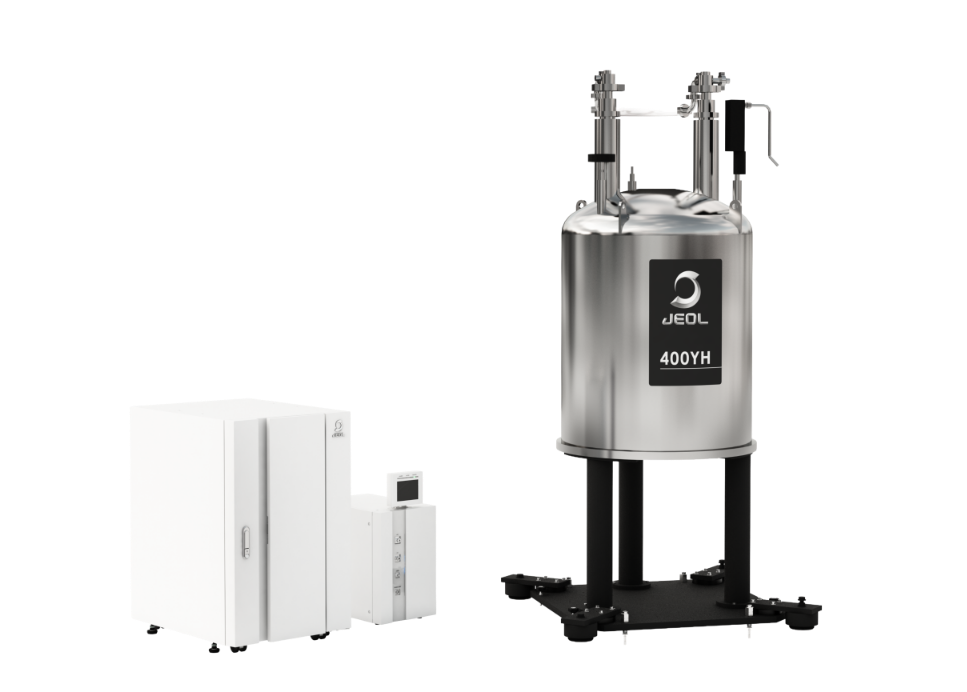

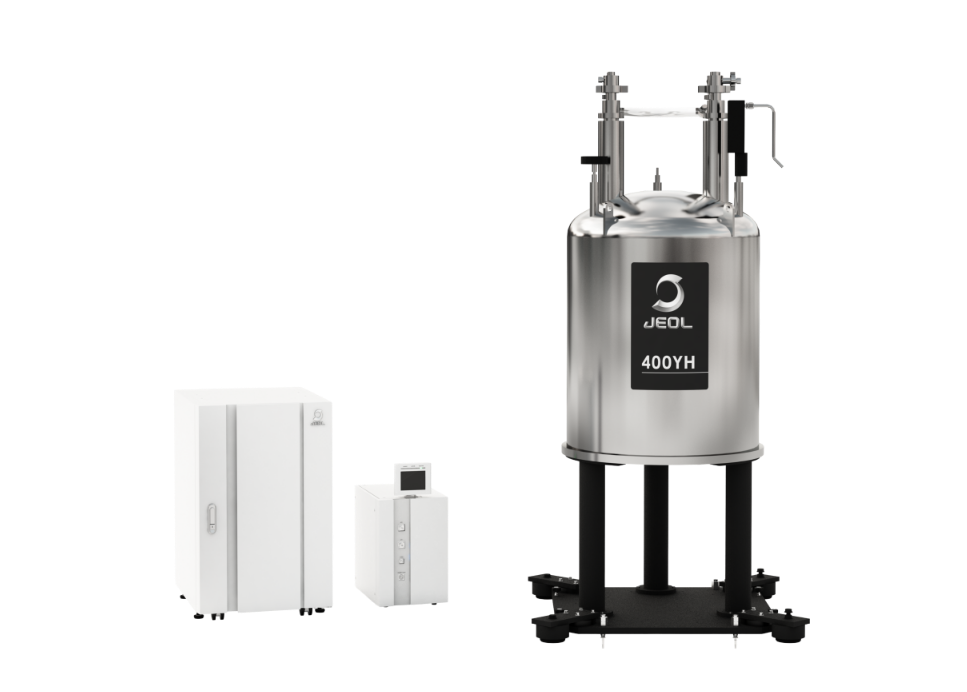

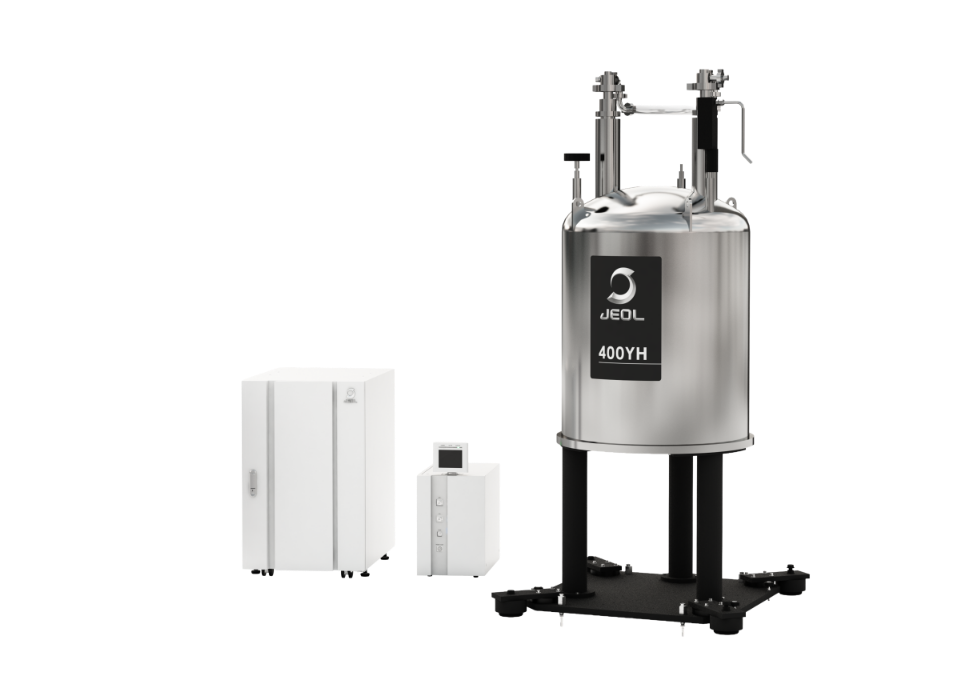

JMTC-400/54/JJ/YH
Type
JMTC-400/54/JJ/YH
Bore Size(mm)
54
Central field(T)
9.4
Field Stability(Hz/h)
≦4
5 Gauss Stray Field Radial  (m)
0.5
5 Gauss Stray Field Axial  (m)
1.0

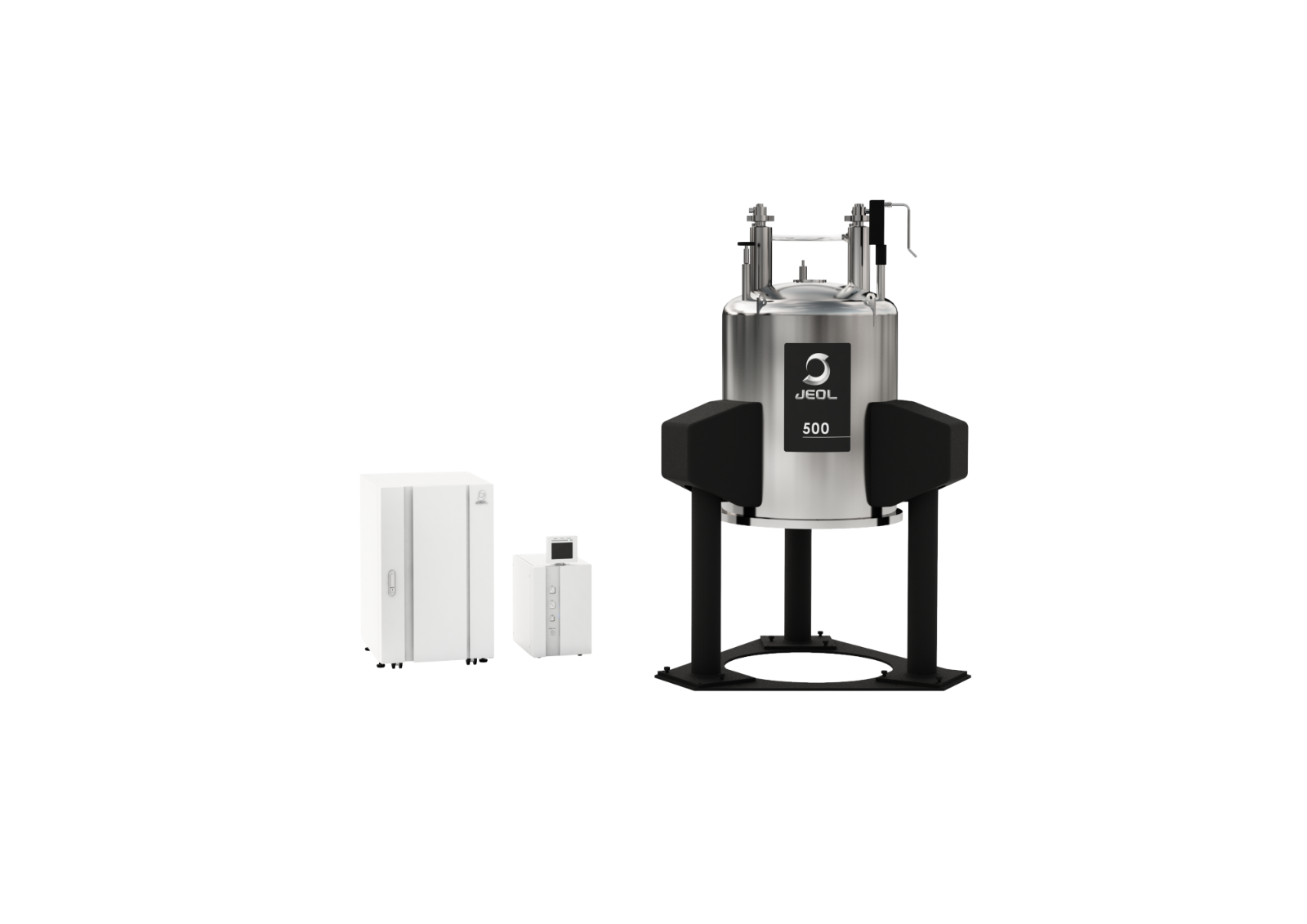

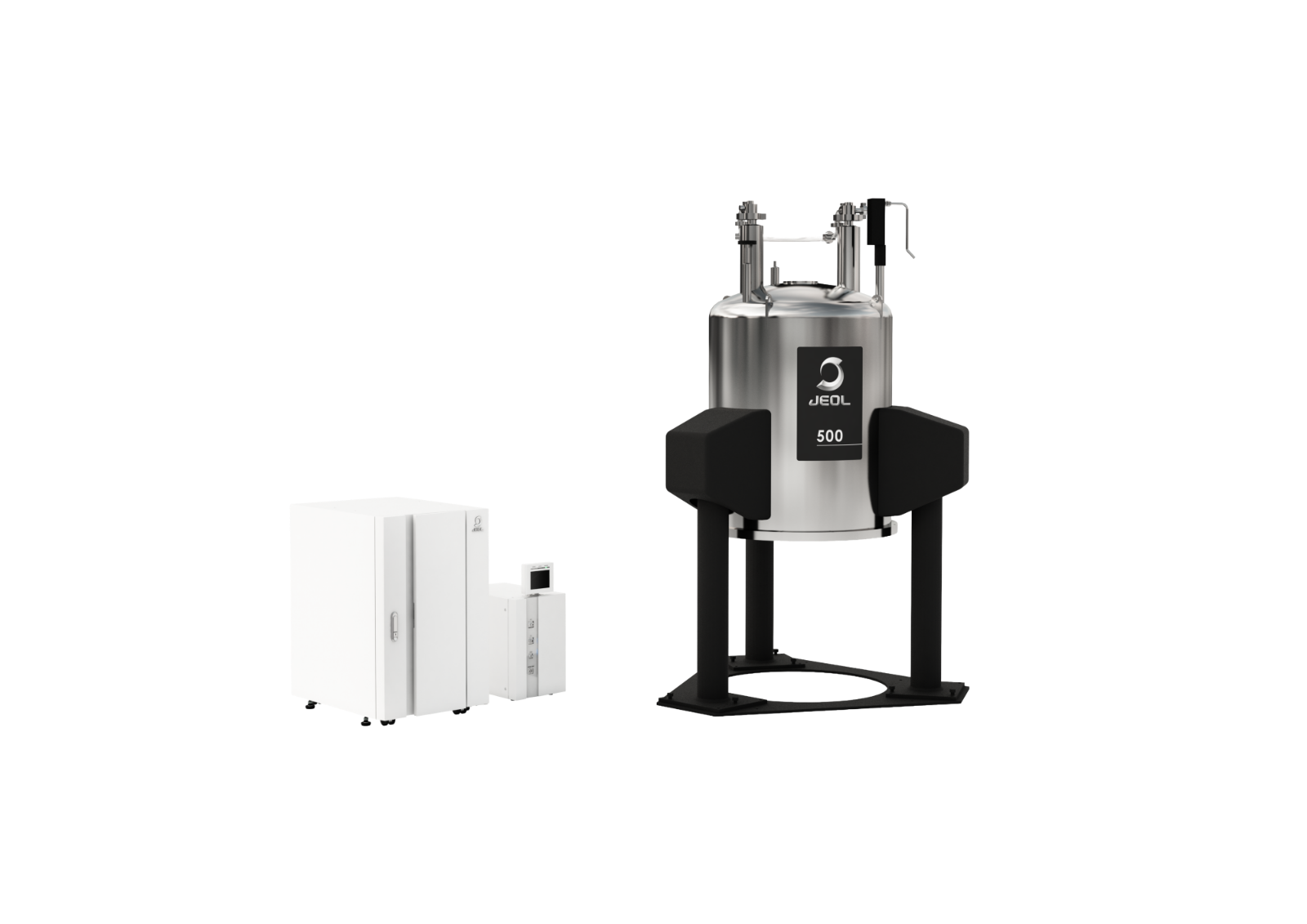

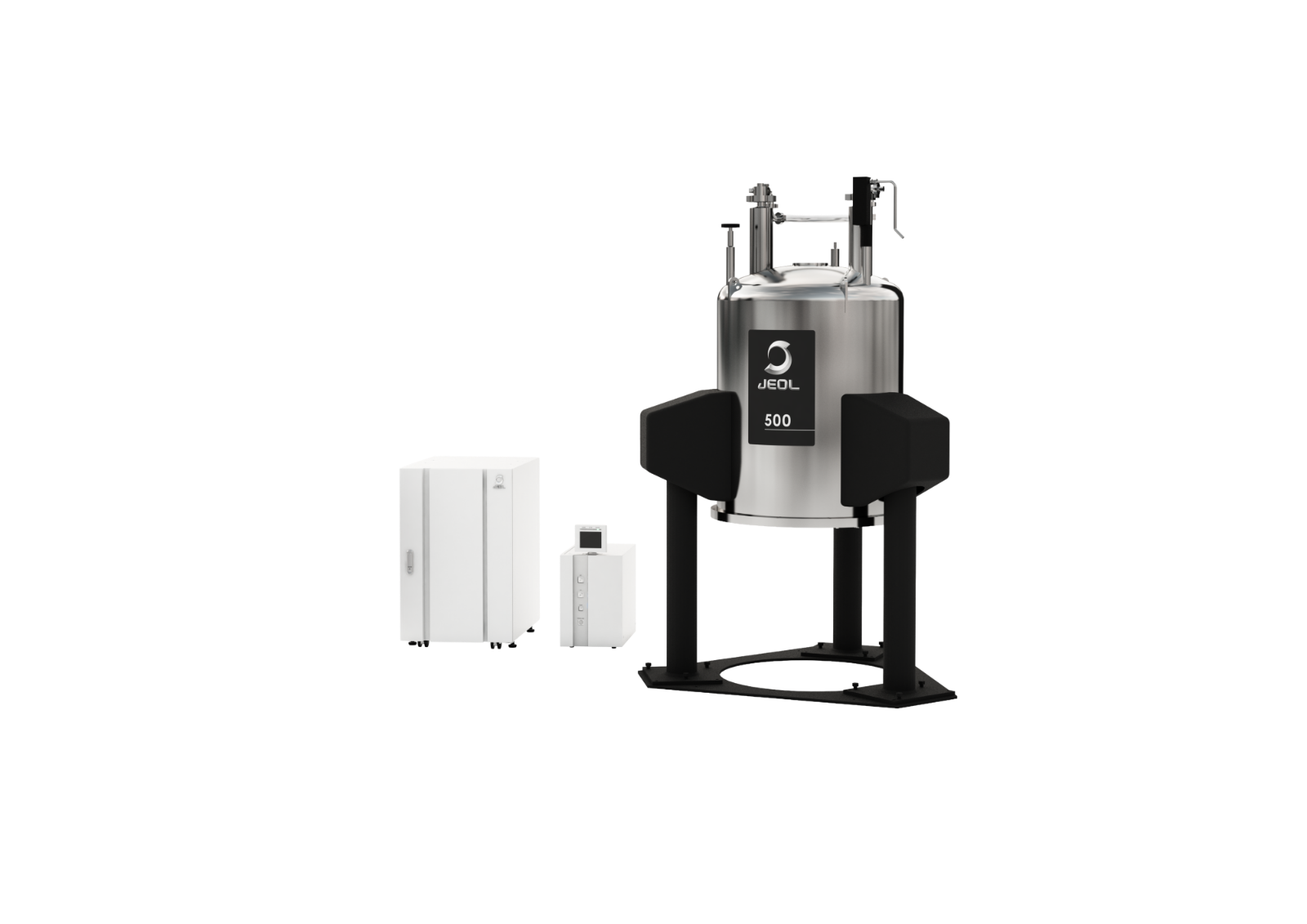

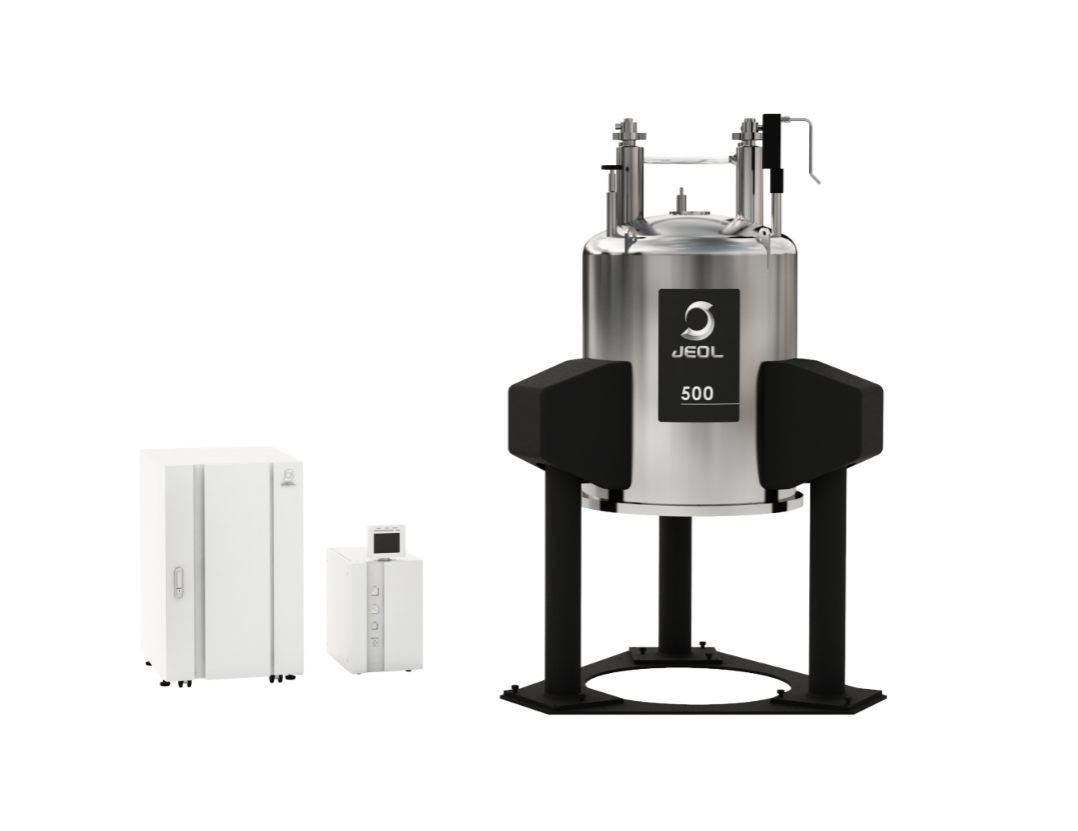

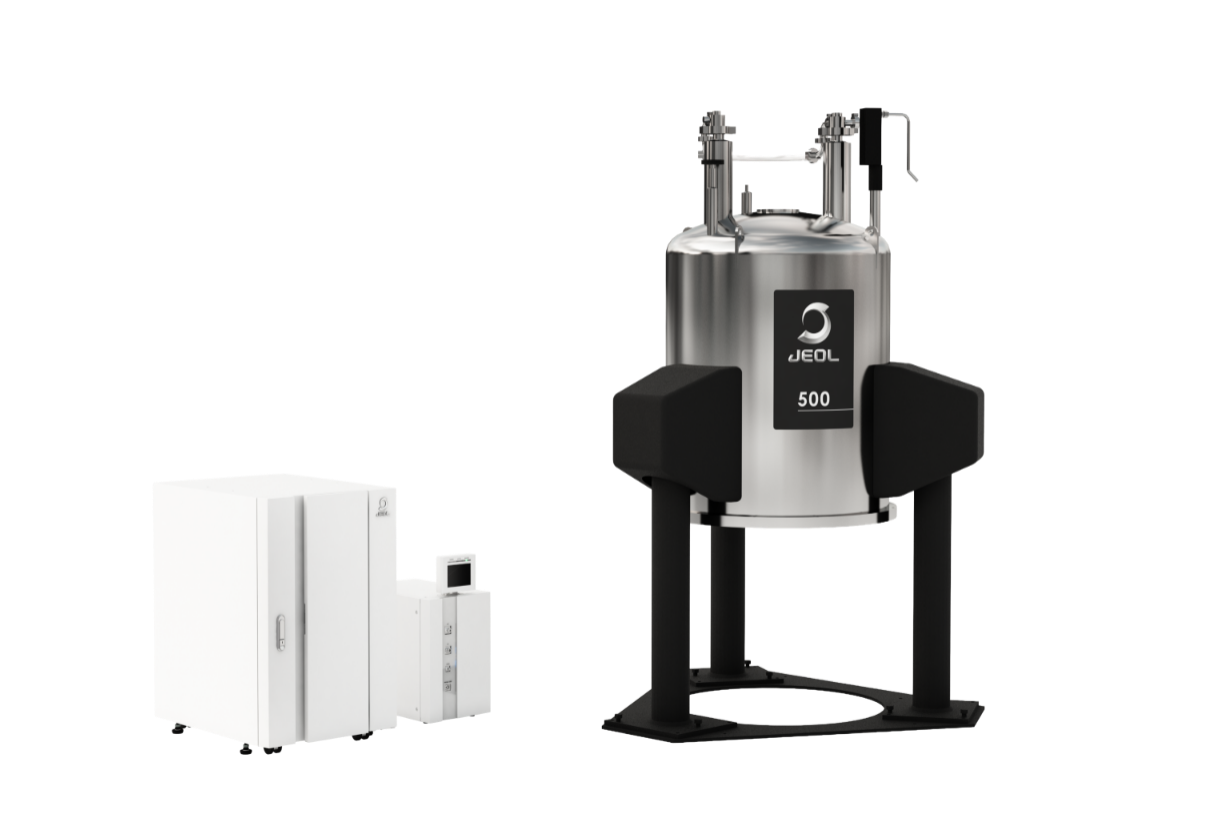

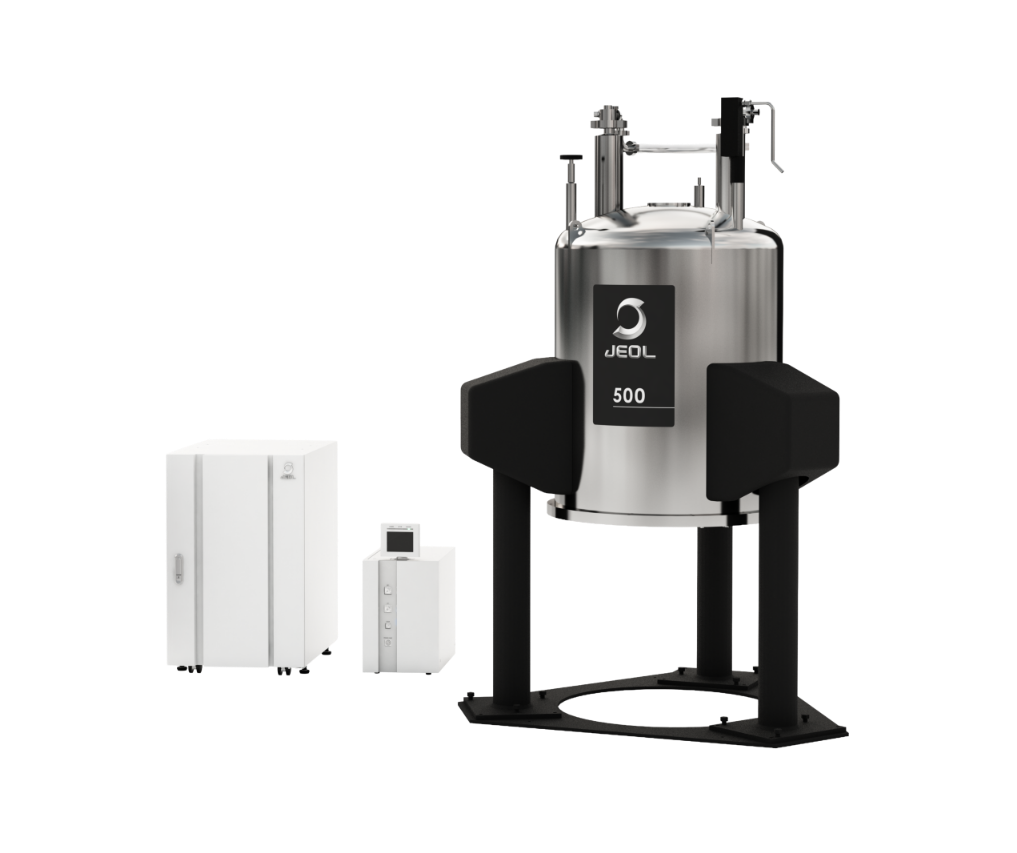

JMTC-500/54/XC V.2
Type
JMTC-500/54/XC V.2
Bore Size(mm)
54
Central field(T)
11.7
Field Stability(Hz/h)
≦5
5 Gauss Stray Field Radial  (m)
0.6
5 Gauss Stray Field Axial  (m)
1.15

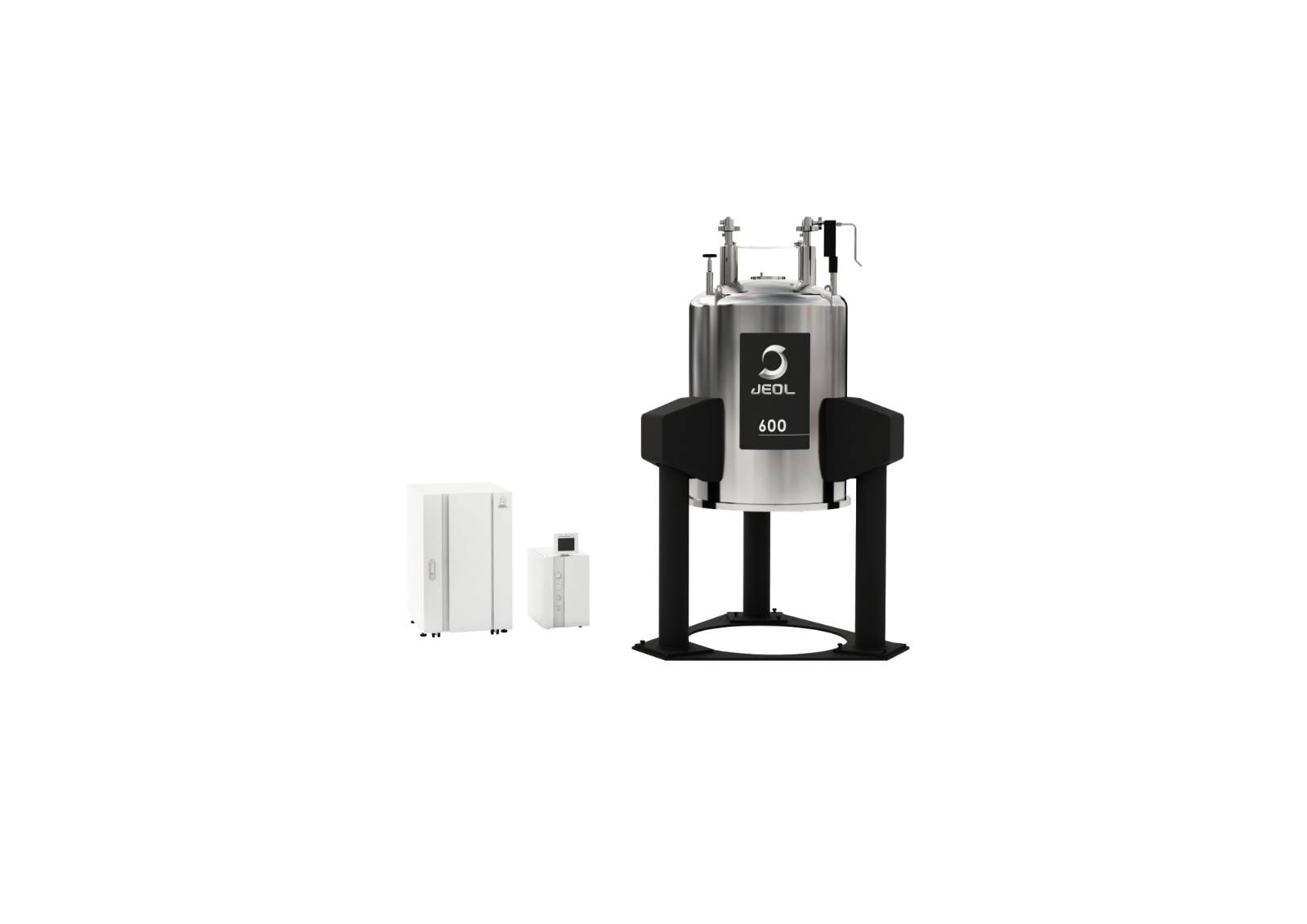

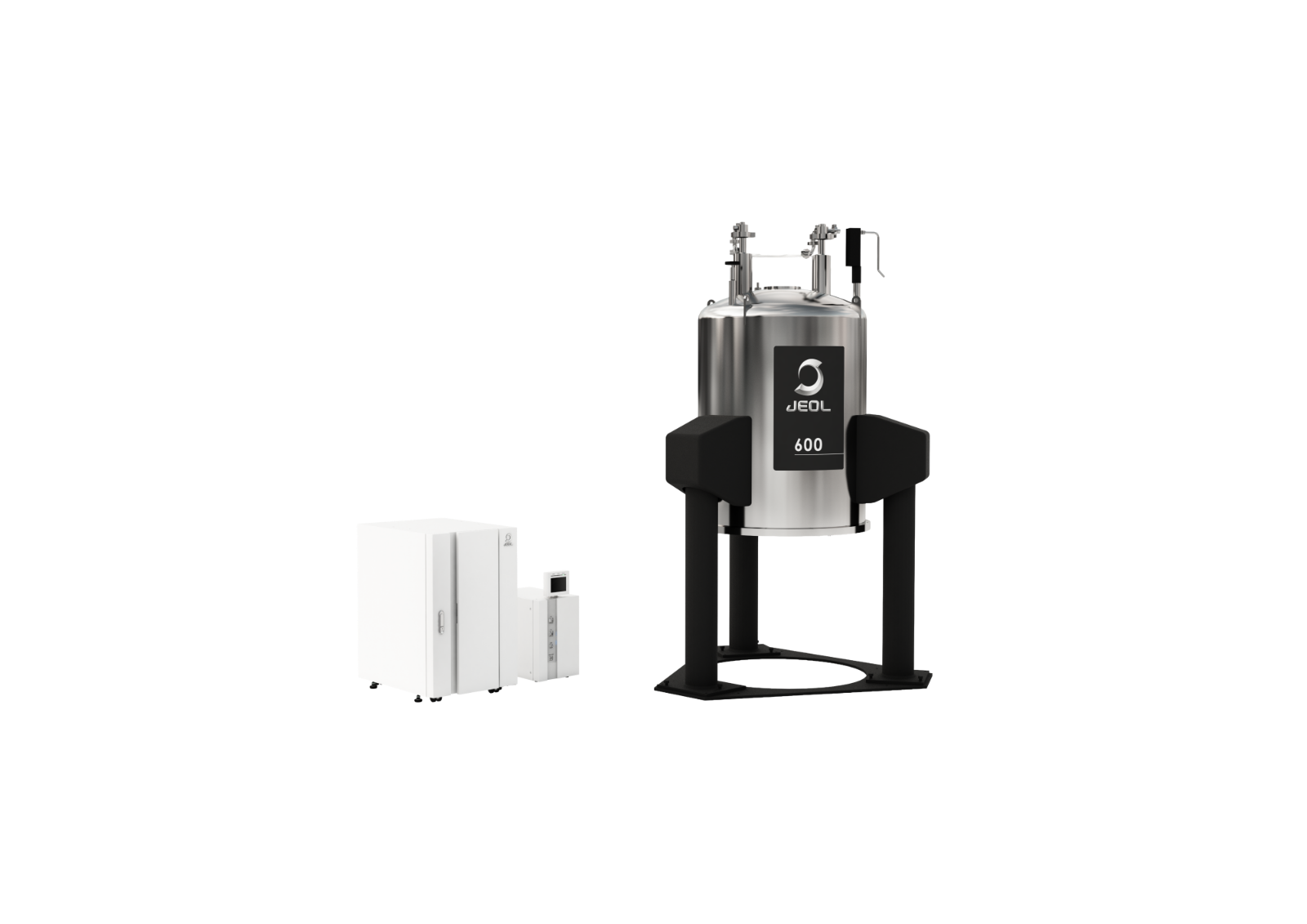

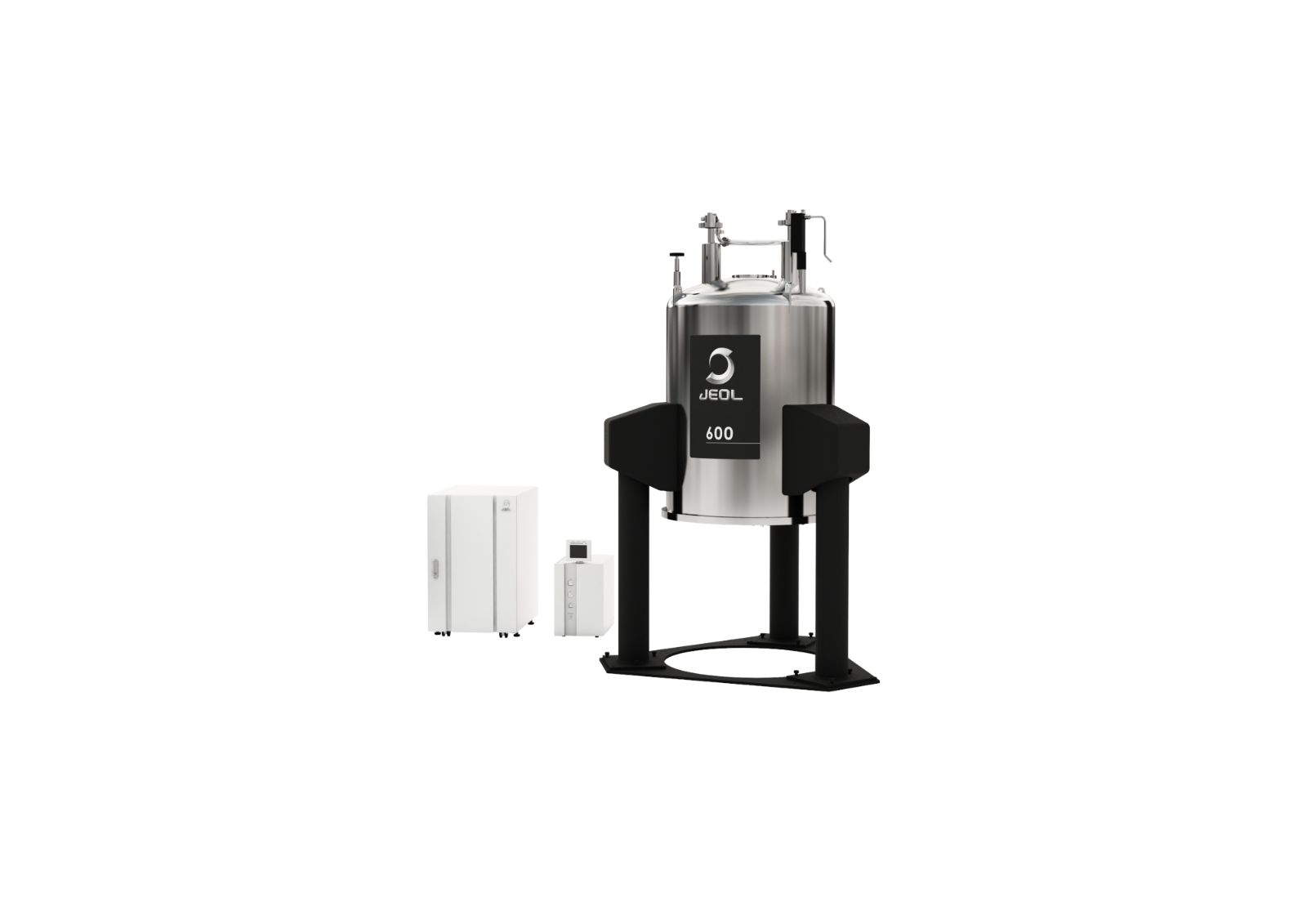

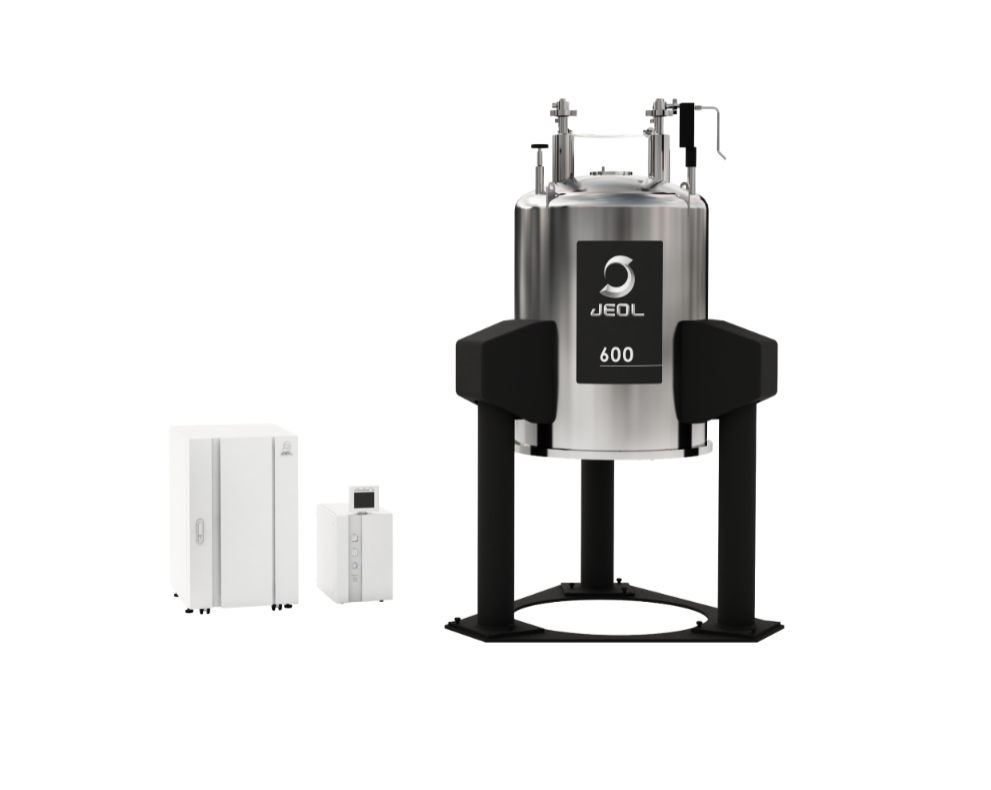

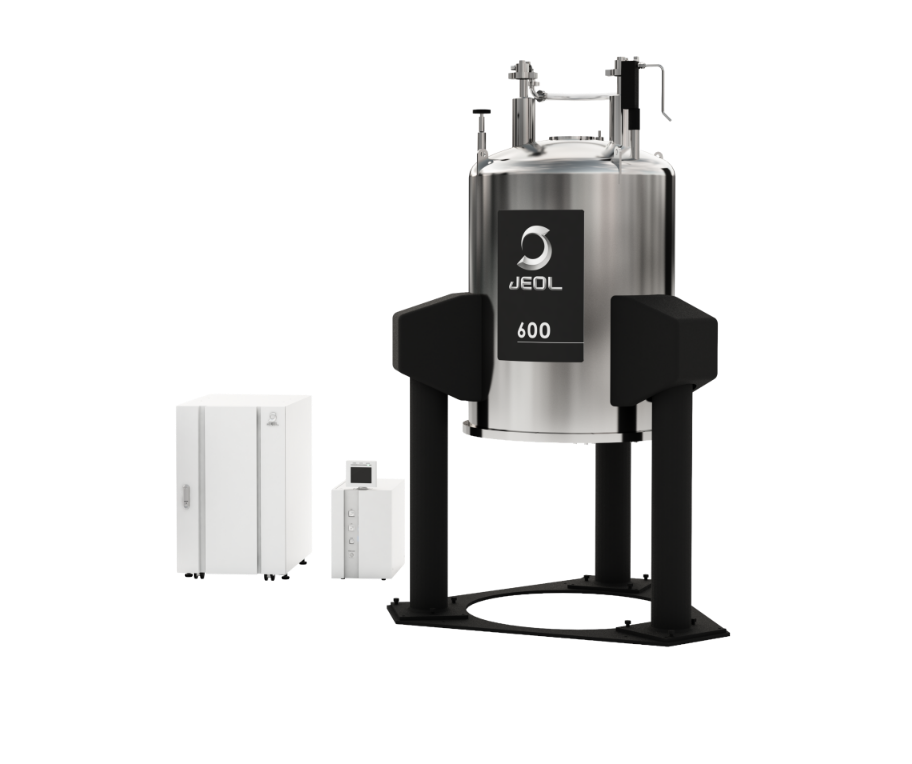

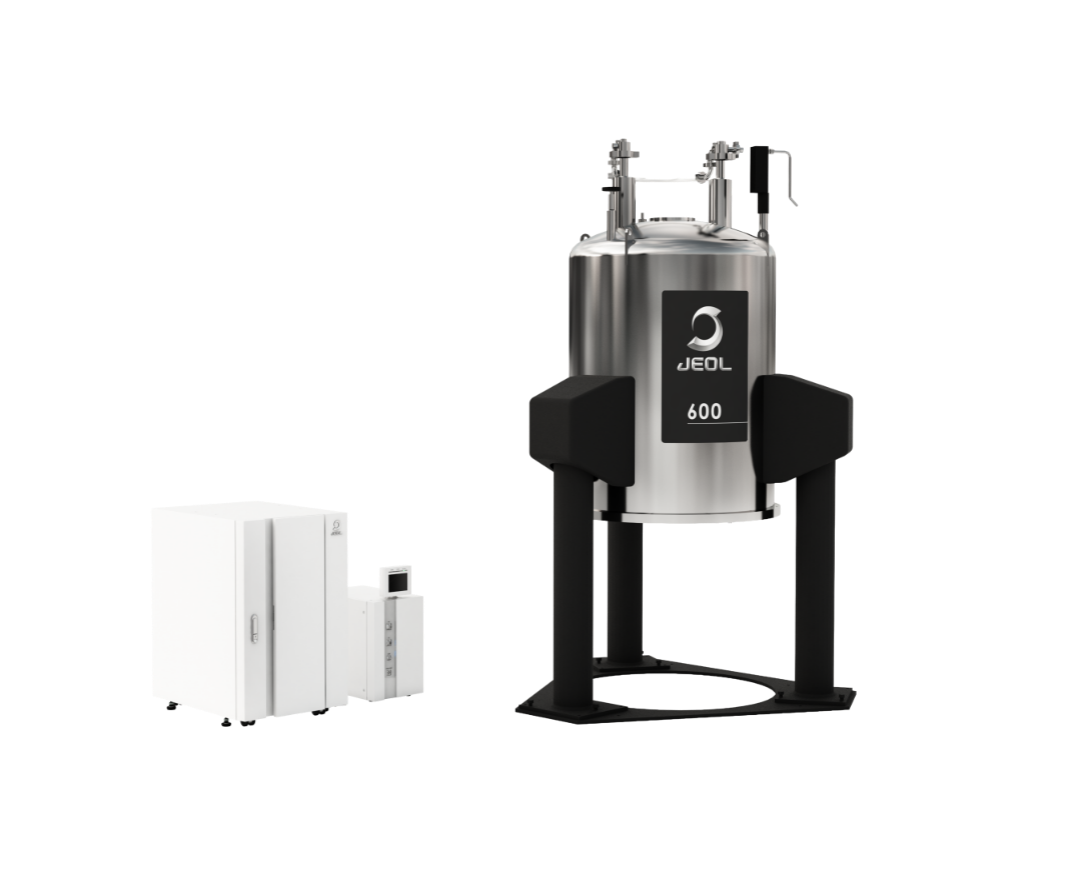

  JMTC-600/54/XC V.2
Type
JMTC-600/54/XC V.2
Bore Size(mm)
54
Central field(T)
14
Field Stability(Hz/h)
≦5
5 Gauss Stray Field Radial  (m)
0.7
5 Gauss Stray Field Axial  (m)
1.3

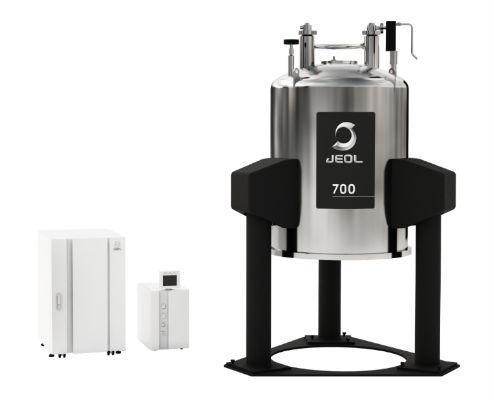

  JMTC-700/54/JJ
Type
JMTC-700/54/JJ
Bore Size(mm)
54
Central field(T)
16.4
Field Stability(Hz/h)
≦7
5 Gauss Stray Field Radial  (m)
0.8
5 Gauss Stray Field Axial  (m)
1.6

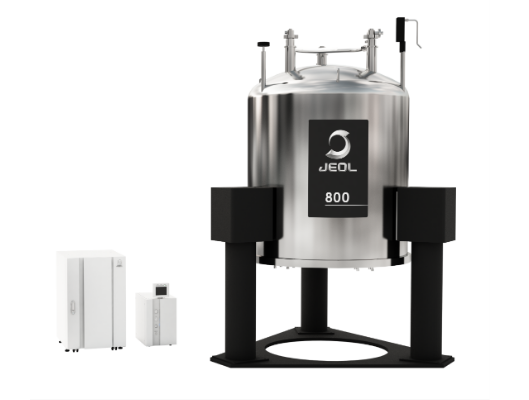

  JMTC-800/54/JJ
Type
JMTC-800/54/JJ V.2
Bore Size(mm)
54
Central field(T)
18.8
Field Stability(Hz/h)
≦8
5 Gauss Stray Field Radial  (m)
1.5
5 Gauss Stray Field Axial  (m)
2.5
