NMRマグネット製品ラインアップ
製品紹介

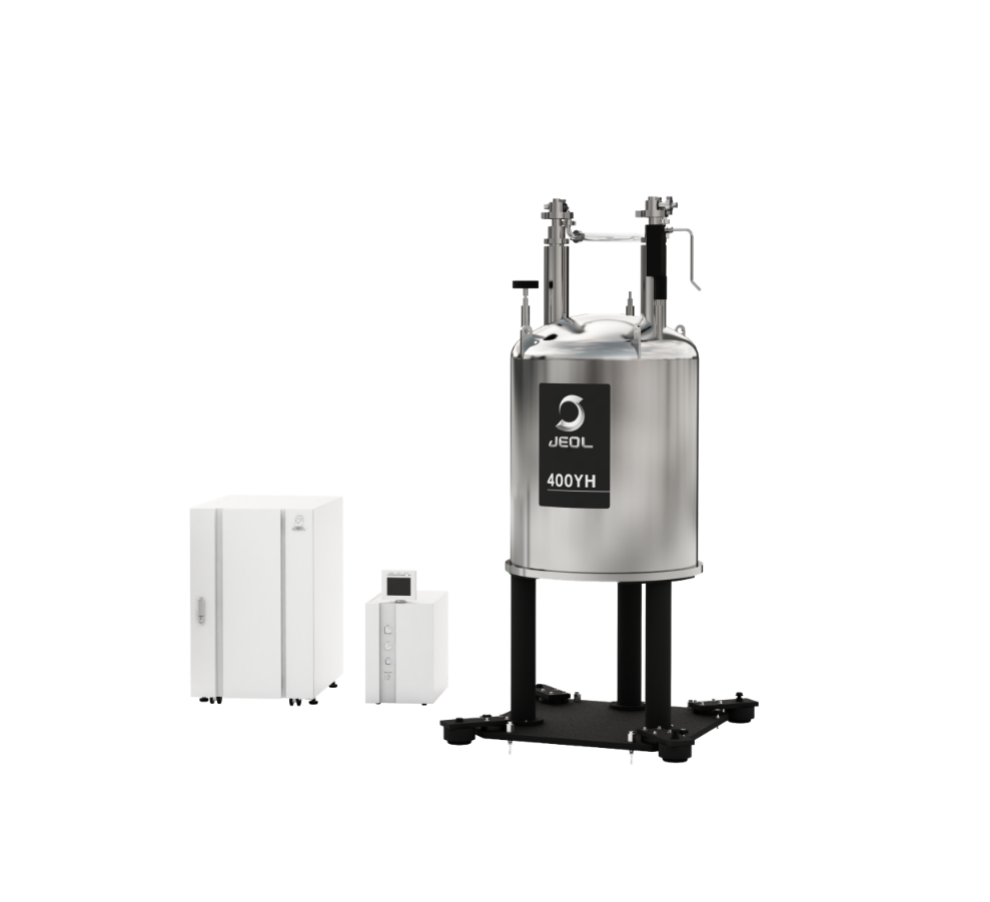

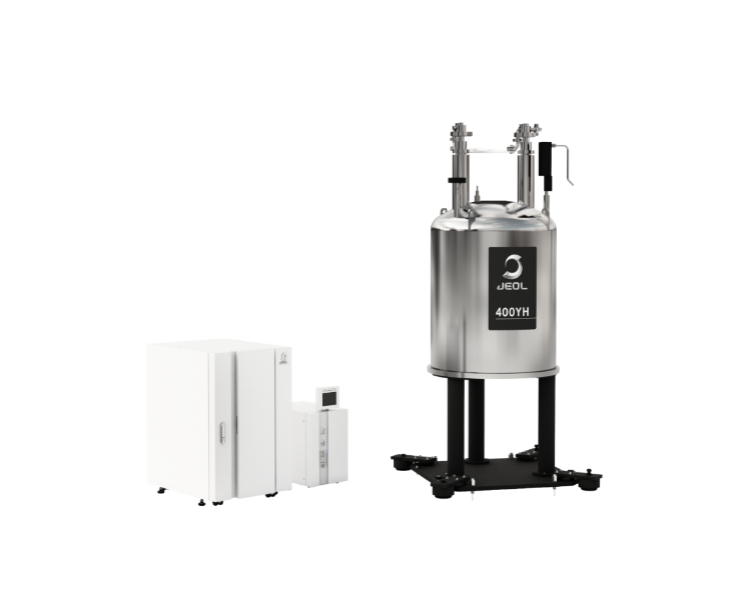

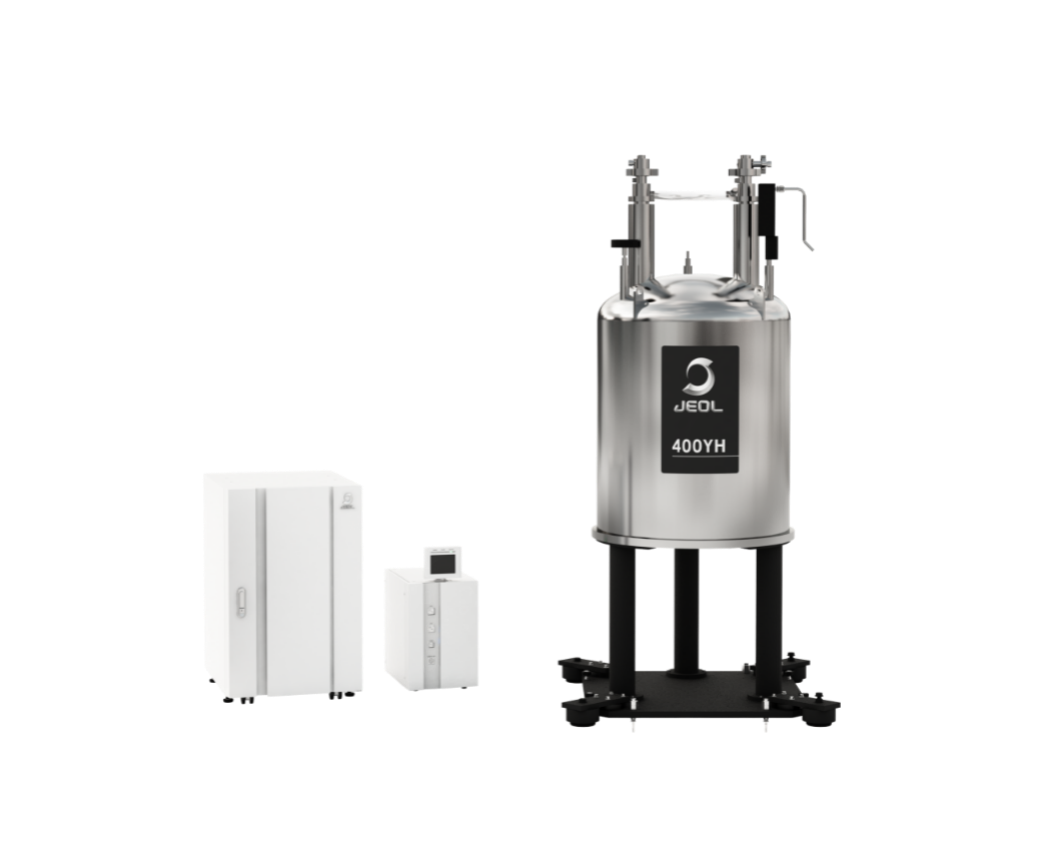

JMTC-400/54/JJ/YH
Type |
JMTC-400/54/JJ/YH |
|---|---|
Bore Size(mm) |
54 |
Central Field(T) |
9.4 |
Field Stability(Hz/h) |
≦4 |
5 Gauss Stray Field Radial(m) |
0.5 |
5 Gauss Stray Field Axial(m) |
1.0 |

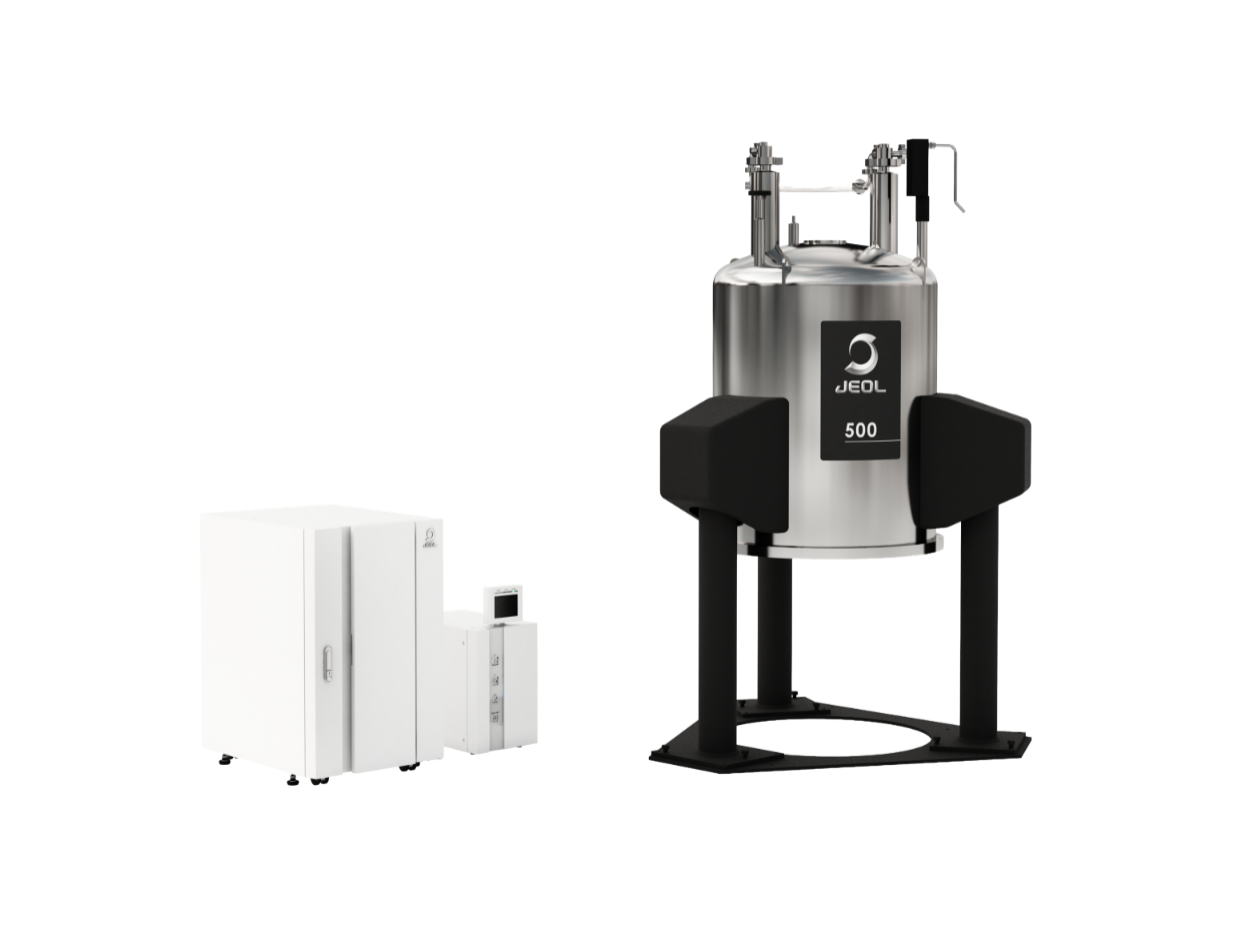

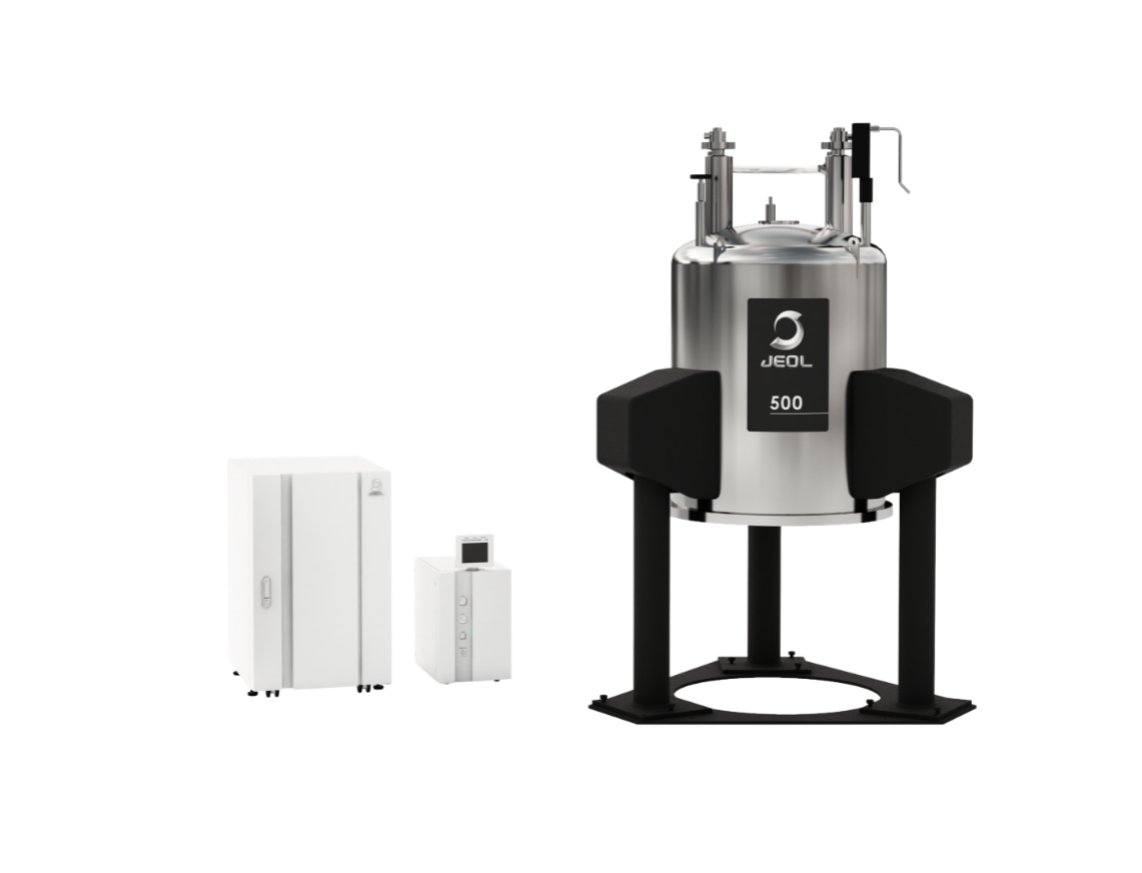

500/54/XC V.2
Type |
500/54/XC V.2 |
|---|---|
Bore Size(mm) |
54 |
Central Field(T) |
11.7 |
Field Stability(Hz/h) |
≦5 |
5 Gauss Stray Field Radial(m) |
0.6 |
5 Gauss Stray Field Axial(m) |
1.15 |

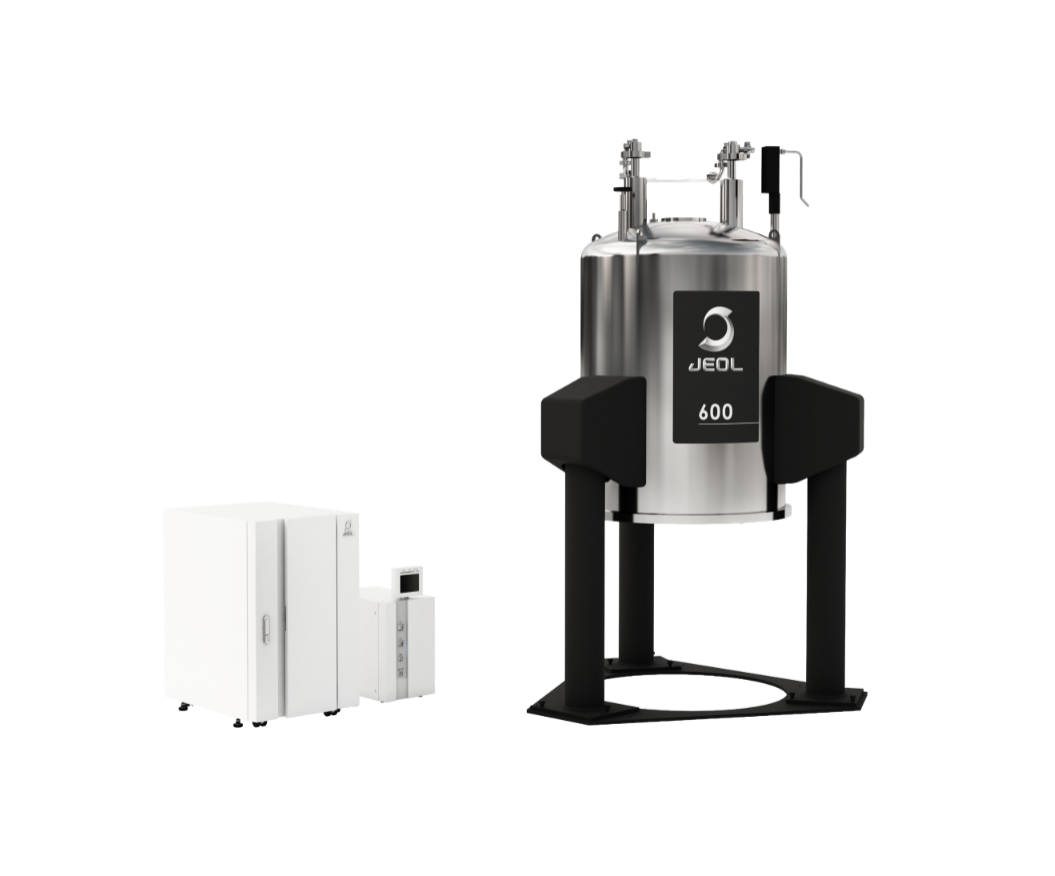

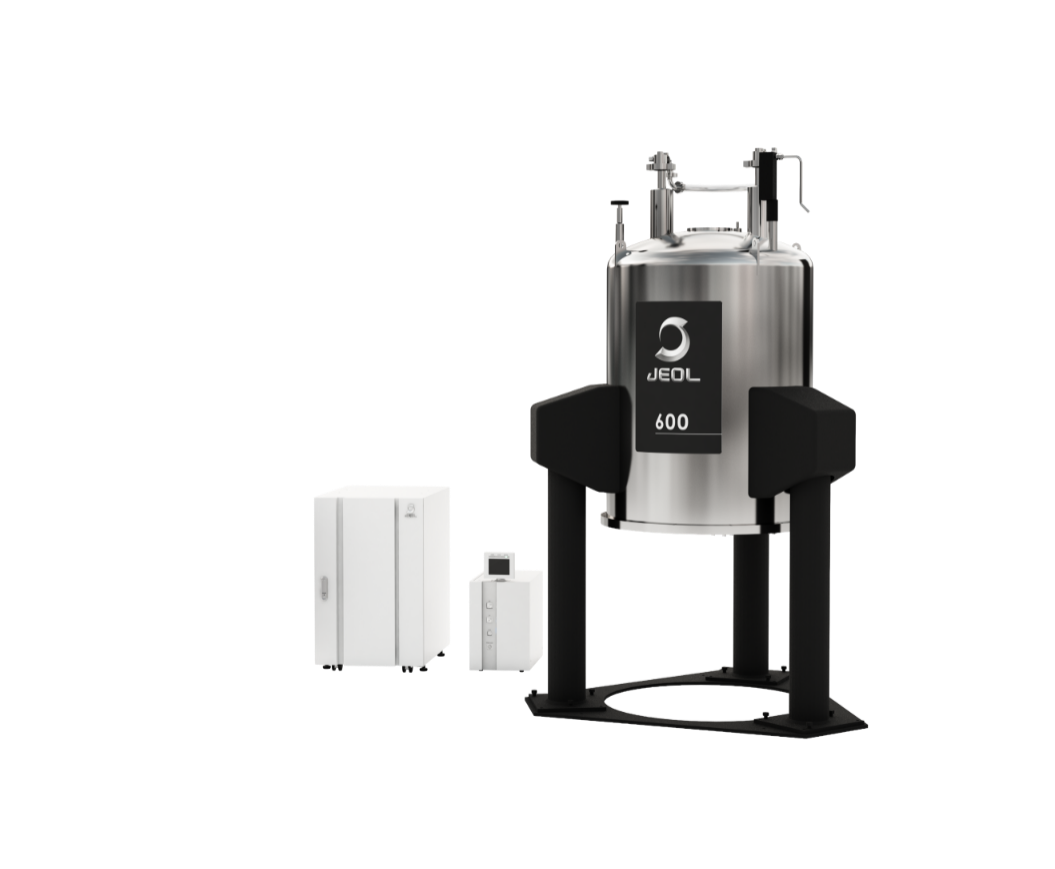

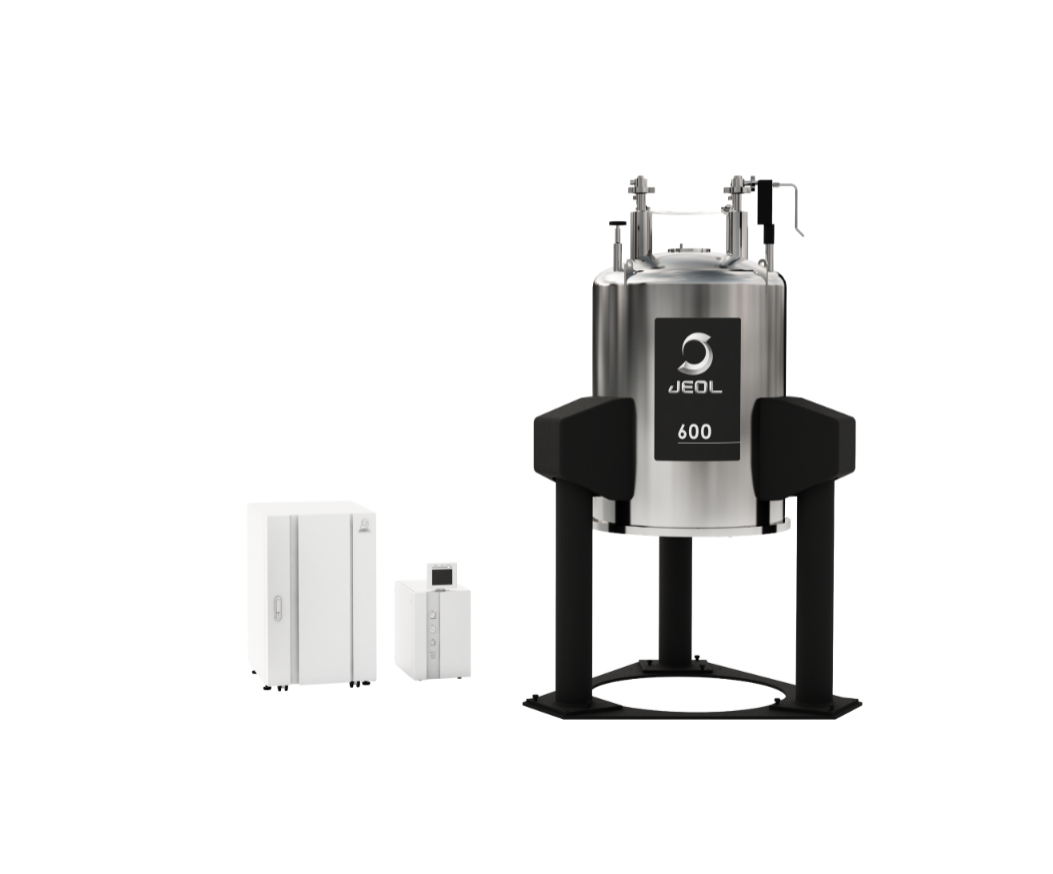

600/54/XC V.2
Type |
600/54/XC V.2 |
|---|---|
Bore Size(mm) |
54 |
Central Field(T) |
14 |
Field Stability(Hz/h) |
≦5 |
5 Gauss Stray Field Radial(m) |
0.7 |
5 Gauss Stray Field Axial(m) |
1.3 |

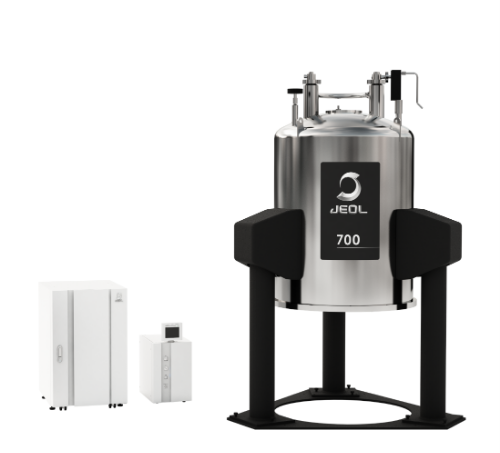

JMTC-700/54/JJ
Type |
JMTC-700/54/JJ |
|---|---|
Bore Size(mm) |
54 |
Central Field(T) |
16.4 |
Field Stability(Hz/h) |
≦7 |
5 Gauss Stray Field Radial(m) |
0.8 |
5 Gauss Stray Field Axial(m) |
1.6 |

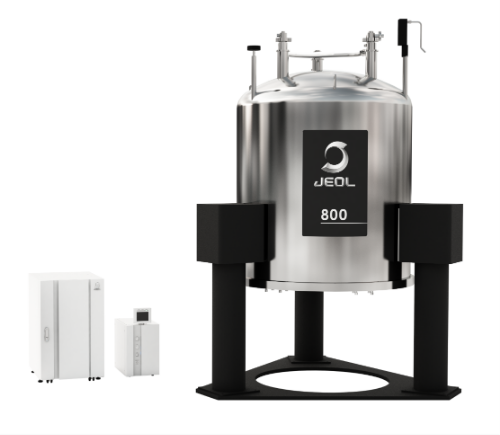

JMTC-800/54/JJ V.2
Type |
JMTC-800/54/JJ V.2 |
|---|---|
Bore Size(mm) |
54 |
Central Field(T) |
18.8 |
Field Stability(Hz/h) |
≦8 |
5 Gauss Stray Field Radial(m) |
1.5 |
5 Gauss Stray Field Axial(m) |
2.5 |
