The CR-80 Cryogen Reclamation System recovers, cools, and recondenses the nitrogen and helium gases that naturally evaporate from NMR superconducting magnets, returning them to the magnet as liquid cryogens.
By significantly reducing cryogen boil-off, the CR-80 helps minimize liquid nitrogen and liquid helium consumption, lowering operating costs while enhancing system convenience and sustainability.
Model |
CR-80 |
|---|---|
Nitrogen Liquefaction Capacity |
≥ 10 W |
Helium Liquefaction Capacity |
≥ 0.15 W |
Installation |
Mounted on a dedicated support frame |
Weight |
40kg |
Maintenance Interval |
Approx. 10,000 operating hours |

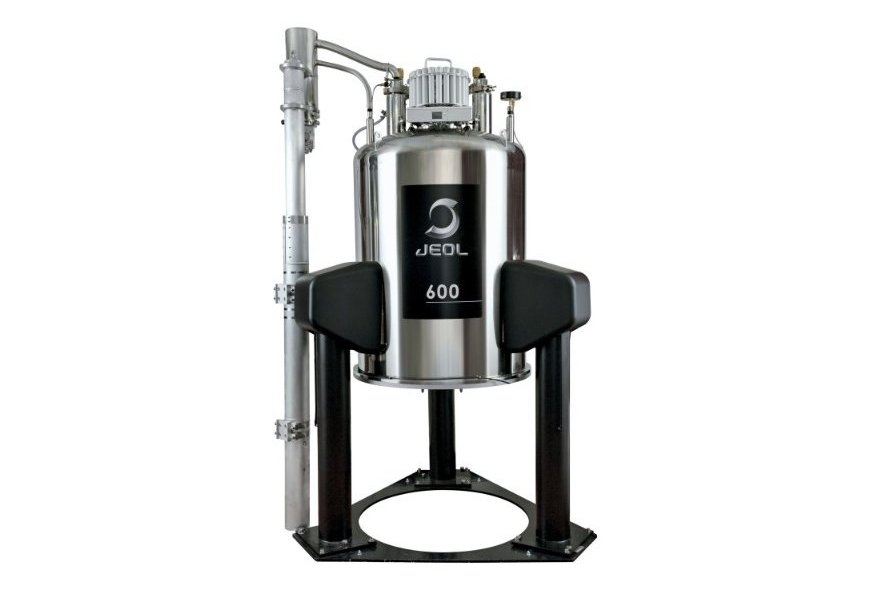

(Image courtesy of JEOL Ltd.)

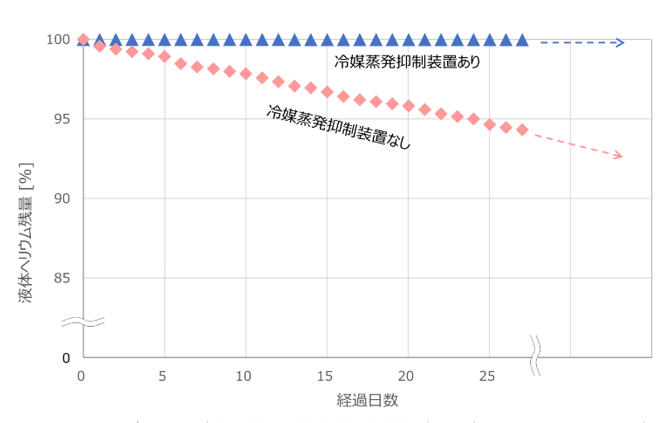

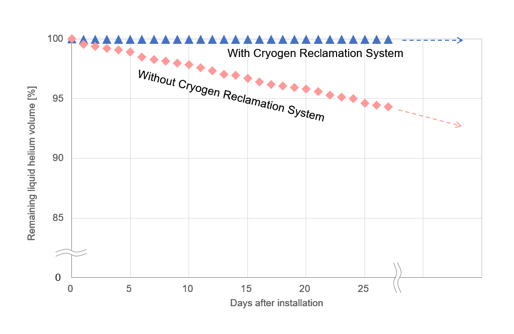

When the CR-80 is installed, the liquid helium level remains nearly constant over time, demonstrating a substantial reduction in helium loss and replenishment requirements.
*We also offer a variety of accessories for NMR magnet systems.
Please contact us for further details.
