High-Field Superconducting Magnets for Research
Products
We are certified to ISO 13485, the international quality management standard for medical devices. Leveraging our expertise in superconducting magnet technology, we have contributed to the healthcare industry through the supply of superconducting magnets for extremity MRI systems and MR-guided radiation therapy systems. (Medical MRI magnet systems are customized products designed to meet the specific requirements of each customer. For detailed information, please contact us. )
JMTB-1.5T/280/SS
Designed with a lightweight and compact structure, this magnet enables space-efficient installation with a reduced footprint. It is used in specialized MRI systems for imaging extremities such as elbows, knees, and ankles, complementing conventional whole-body MRI systems. The magnet has also been adopted in research equipment utilizing NMR signals. To date, we have delivered more than 250 units worldwide.
Magnetic Field |
Bore Size |
Field Homogeneity |
Weight |
Fringe Field |
|---|---|---|---|---|
1.5T |
280mm |
＜100ppm ／ 160mm dsv |
350Kg |
1.9×1.2m (5Gauss) |
JMTB-0.35/1100/SS/280SP
*This magnet system is a custom-designed model incorporating patented technologies owned by the customer.

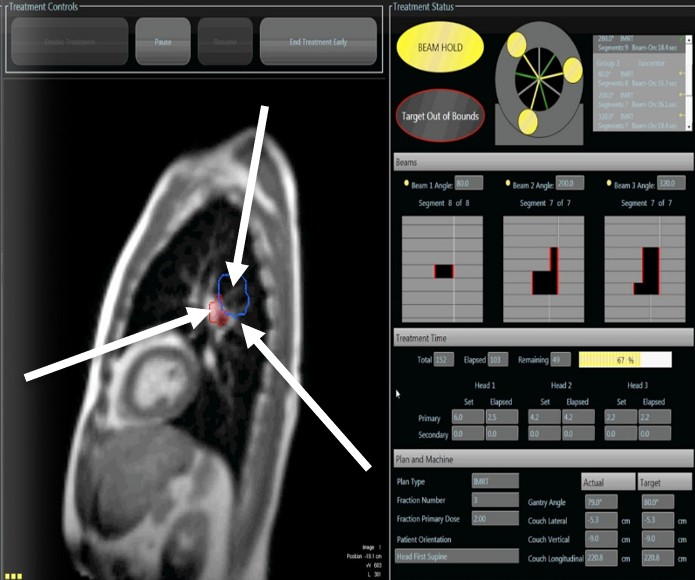

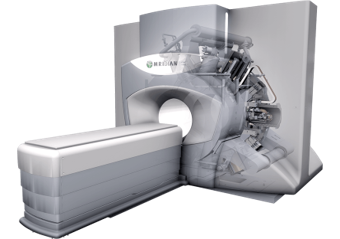

As part of our continued expansion in the healthcare market, we have developed this customized superconducting magnet for advanced cancer treatment systems. The system incorporates a pair of split magnets that provide space for a radiation (X-ray) therapy gantry, enabling real-time MRI-guided treatment. This unique configuration allows clinicians to continuously visualize the target area during radiation delivery, helping improve treatment accuracy and patient outcomes.
Image source: https://viewraysystems.com//
Magnetic Field |
Bore Size |
Field Homogeneity |
Weight |
Fringe Field |
|---|---|---|---|---|
0.35T |
1100mm |
＜10.0ppm ／ 450mm dsv |
8180kg |
3.4×4.4m (5Gauss) |
